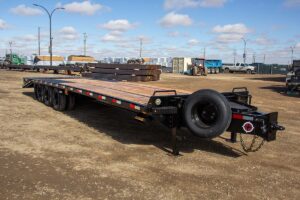

A-Frame Flatbed
Build your trailer
Select your configuration below. Specs update automatically.
Axle
Axle Configuration
Deck Type
Live Specifications
Download PDF
Axle
(3) 16,000 lb
Coupler
3" I.D. Draw Bar Pintle 60,000 lb
Safety Chains
45,200 lb 1/2" x 42.0" w/Clevis Slip Hook
Crossmember
1.25" SCH40 Steel Pipe
Lights
L.E.D. DOT Stop, Tail, Turn & Clearance
Deck
2" x 8" Fir Plank Decking
Suspension
Multi-Leaf Spring w/ Equalizer
Wheels
ST235/80R16 E 10ply
Brakes
Electric
Electric Plug
Cold Weather 7 Wire RV Plug
Jack
12,000 lb, Bolted, 13.5" Lift, Spring Loaded Front Pull Pin Drop Leg
Frame
90ksi Engineered Pierced-Beams w/ S3.0" x 2.9 lb High Tensile 80ksi Super Lite I-Beams
Side Rails
5" x 2" HSS Tubing, 2" x 3/8" Flat Bar Rub Rails, Chain Spools & Stake Pockets
Rating Set
Standard | Standard | Standard | Standard | Standard | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option
Length (ft)
22 | 24 | 26 | 28 | 30 | 22 | 24 | 26 | 28 | 30
Net Weight (lb)
8765 | 9130 | 9310 | 9673 | 9775 | 8890 | 9255 | 9435 | 9798 | 9900
GVWR (lb)
30000 | 30000 | 30000 | 30000 | 30000 | 40000 | 40000 | 40000 | 40000 | 40000
Payload Capacity (lb)
21235 | 20870 | 20690 | 20327 | 20225 | 31110 | 30745 | 30565 | 30202 | 30100
Dimension A
192.125 | 216.125 | 240.125 | 264.125 | 288.125 | 192.125 | 216.125 | 240.125 | 264.125 | 288.125
Dimension B
151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25
Dimension C
58 | 58 | 58 | 58 | 58 | 58 | 58 | 58 | 58 | 58
Dimension D
25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25
Dimension E
33.5 | 33.75 | 34 | 34.25 | 34.5 | 33.5 | 33.75 | 34 | 34.25 | 34.5
Dimension F
79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125
Dimension G
1.3125 | 1.625 | 1.875 | 2.1875 | 2.5625 | 1.3125 | 1.625 | 1.875 | 2.1875 | 2.5625
3-Year Warranty
Structural integrity guaranteed.
