SL510-5K-1-1

5′ x 10′ Dump Trailer

Build your trailer

Select your configuration below. Specs update automatically.

Axle
5K 10K
SL510-5K-1-1
SL510-5K-1
SL510-5K-2
SL510-5K-3
SL510-5K-4
SL510-5K-5
SL510-5K-2
SL510-5K-3
SL510-5K-4
SL510-5K-5
SL510-5K-6
SL510-5K
SL510-5K
SL510-5K-2-1
SL510-5K-3-1
SL510-5K-1-1
SL510-5K-1
SL510-5K-2
SL510-5K-3
SL510-5K-4
SL510-5K-5
SL510-5K-2
SL510-5K-3
SL510-5K-4
SL510-5K-5
SL510-5K-6
SL510-5K
SL510-5K
SL510-5K-2-1
SL510-5K-3-1

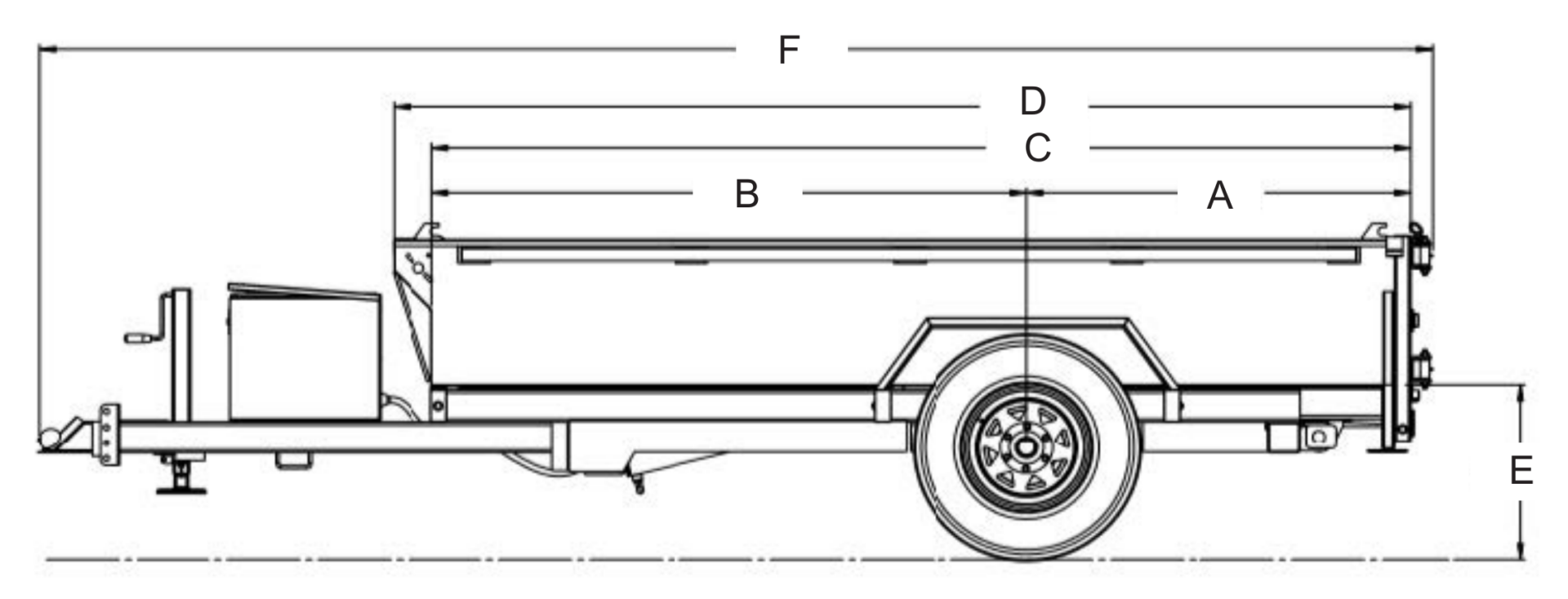

SL510-5K Line Drawing

Live Specifications

Download PDF
Axle (1) 5,200 lb. Lippert Spring
Hoist Champion CS412T 5 Ton
Jack 7,000 lb, Bolted, Top wind, Pull Pin Drop Leg
Ramp (2) 2,500 lb. Midspan Ramps (47 lbs. each)
Wheels 225/75R15 D Steel
Tailgate Steel Barn Door
Coupler 21,000 lb. Demco Adjustable
Floor & Wall 12ga Floor / 14ga Wall
Frame 4 X 2 HSS
Lights LED
Electric Plug Cold Weather 7 Wire RV
Safety Chains 16,200 lb 5/16”
Paint Specs PPG 2-Part Epoxy DTM
Dump Angle 45°
Rating Set Standard
Length (ft) 10
Net Weight (lb) 1979
GVWR (lb) 5720
Payload Capacity (lb) 3741
Dimension A 47 1/2”
Dimension B 74”
Dimension C 121 1/2”
Dimension D 126 1/4”
Dimension E 21 3/4”
Dimension F 173”
3-Year Warranty Structural integrity guaranteed.
Financing Available View partnerships & rates

Interactive Features

Strength to Weight Ratio
Fully Enclosed Wiring
Engineered Sill Design
Heavy Duty Aluminum Toolbox
