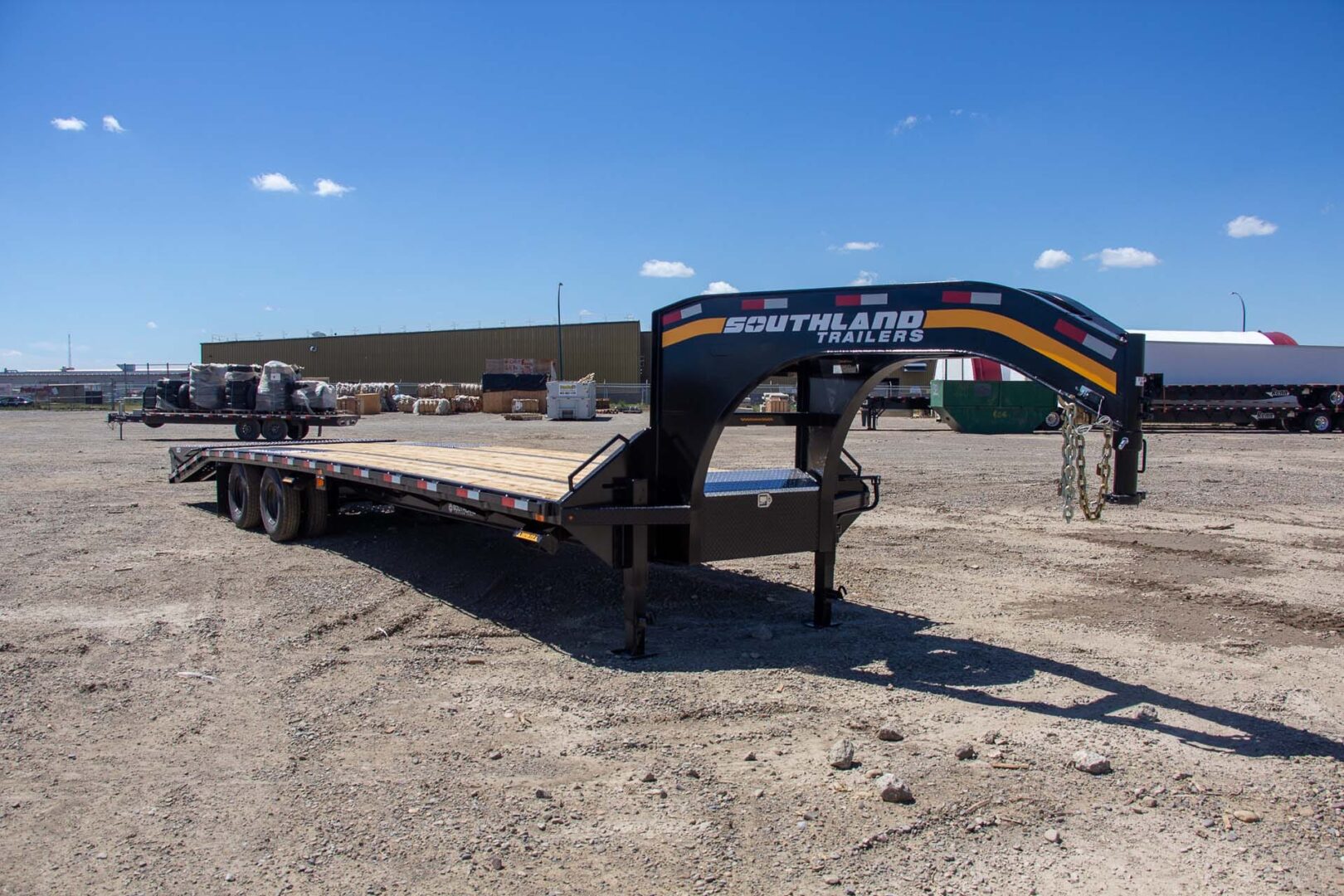

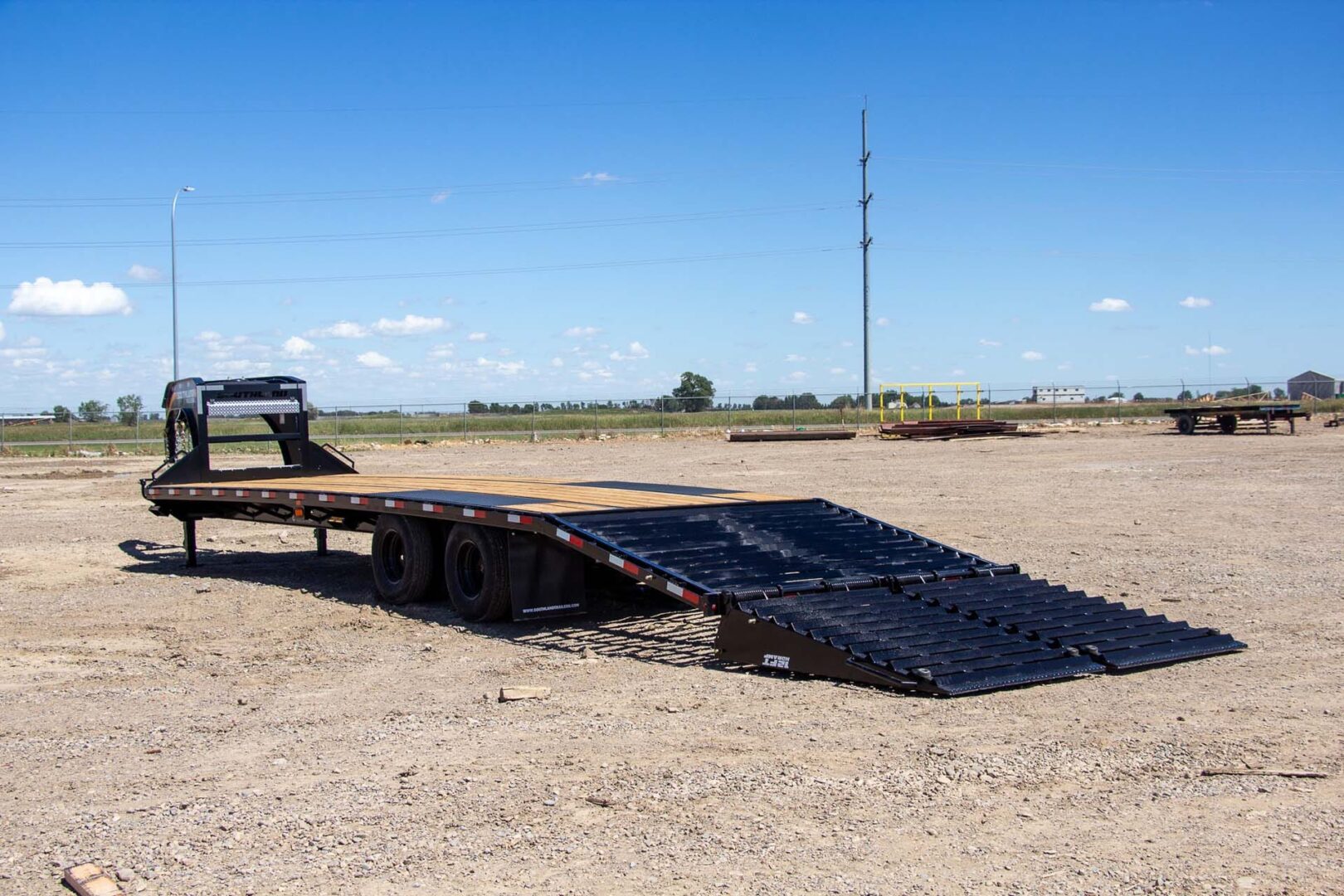

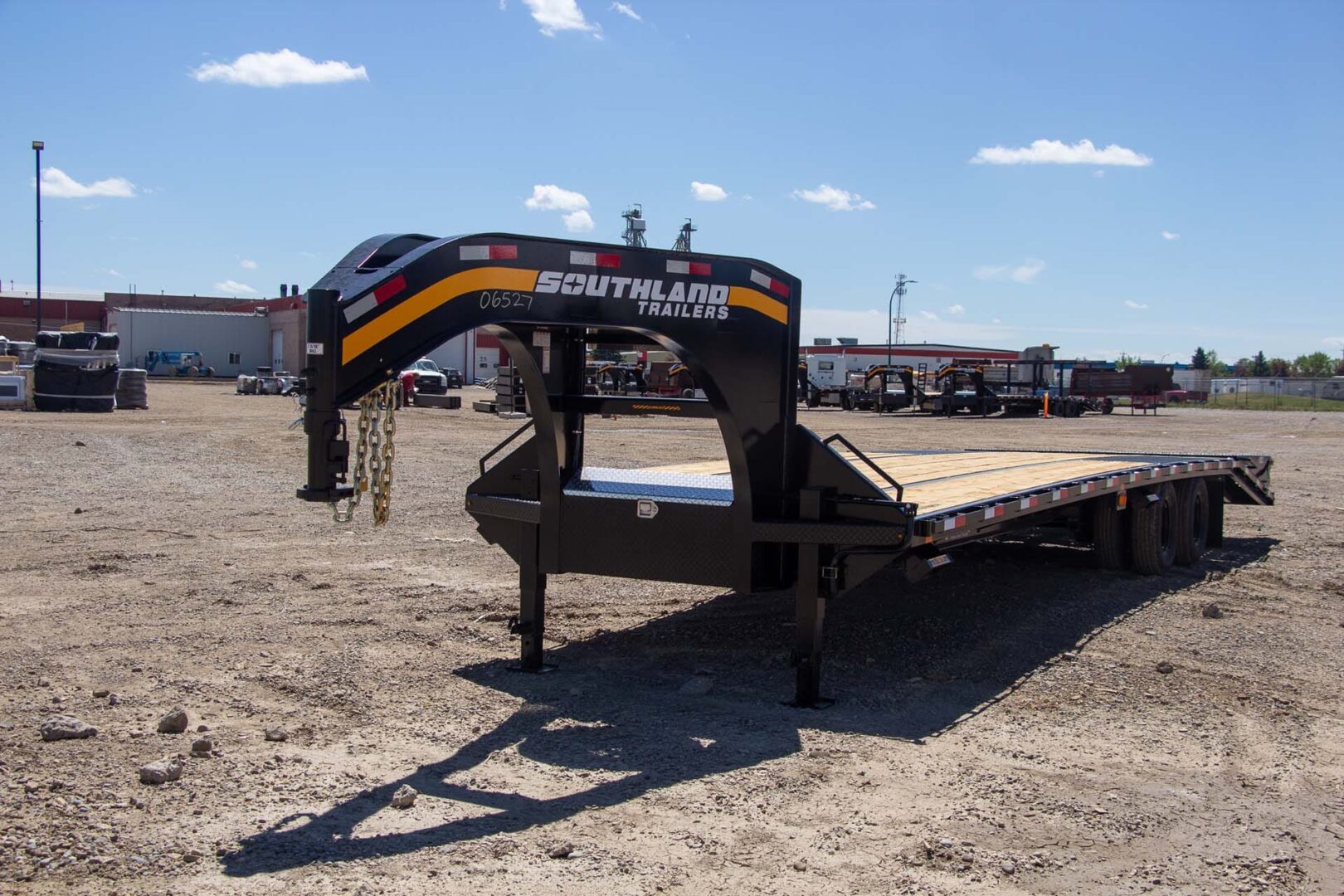

Gooseneck Flatbed
Build your trailer
Select your configuration below. Specs update automatically.
Axle
Axle Configuration
Deck Type
Live Specifications
Download PDF
Axle
(2) 16,000 lb
Coupler
2 5/16" Ball Coupler 30,000 lb
Safety Chains
45,200 lb 1/2" x 42.0" w/Clevis Slip Hook
Crossmember
1.25" SCH40 Steel Pipe
Lights
L.E.D. DOT Stop, Tail, Turn & Clearance
Deck
2" x 8" Fir Plank Decking
Suspension
Multi-Leaf Spring w/ Equalizer
Wheels
ST235/80R16 E 10ply
Brakes
Electric
Electric Plug
Cold Weather 7 Wire RV Plug
Jack
12,000 lb, Bolted, 13.5" Lift, Spring Loaded Front Pull Pin Drop Leg
Frame
90ksi Engineered Pierced-Beams w/ S3.0" x 2.9 lb High Tensile 80ksi Super Lite I-Beams
Side Rails
5" x 2" HSS Tubing, 2" x 3/8" Flat Bar Rub Rails, Chain Spools & Stake Pockets
Neck
Engineered One Piece Continuous Weld 90ksi Gooseneck
Rating Set
Standard | Standard | Standard | Standard | Standard | Standard | Standard | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option
Length (ft)
22 | 24 | 26 | 28 | 30 | 32 | 34 | 22 | 24 | 26 | 28 | 30 | 32 | 34
Net Weight (lb)
7985 | 8210 | 8430 | 8650 | 8870 | 9090 | 9310 | 8110 | 8335 | 8555 | 8775 | 8995 | 9215 | 9435
GVWR (lb)
30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 38000 | 38000 | 38000 | 38000 | 38000 | 38000 | 38000
Payload Capacity (lb)
22015 | 21790 | 21570 | 21350 | 21130 | 20910 | 20690 | 29890 | 29665 | 29445 | 29225 | 29005 | 28785 | 28565

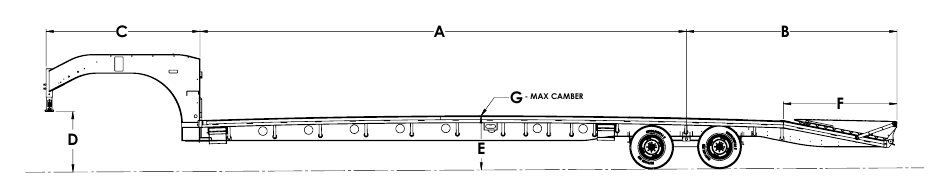

Dimension A
196.25 | 220.25 | 244.25 | 268.25 | 292.25 | 316.25 | 340.25 | 196.25 | 220.25 | 244.25 | 268.25 | 292.25 | 316.25 | 340.25
Dimension B
147.375 | 147.375 | 147.375 | 147.375 | 147.375 | 147.375 | 147.375 | 147.375 | 147.375 | 147.375 | 147.375 | 147.375 | 147.375 | 147.375
Dimension C
107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625
Dimension D
39.25 | 39.25 | 39.25 | 39.25 | 39.25 | 39.25 | 39.25 | 39.25 | 39.25 | 39.25 | 39.25 | 39.25 | 39.25 | 39.25
Dimension E
34.25 | 34.5 | 34.75 | 35 | 35.5 | 35.75 | 36.25 | 34.25 | 34.5 | 34.75 | 35 | 35.5 | 35.75 | 36.25
Dimension F
79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125
Dimension G
1.3125 | 1.625 | 1.875 | 2.1875 | 2.5625 | 2.875 | 3.3125 | 1.3125 | 1.625 | 1.875 | 2.1875 | 2.5625 | 2.875 | 3.3125
3-Year Warranty
Structural integrity guaranteed.
