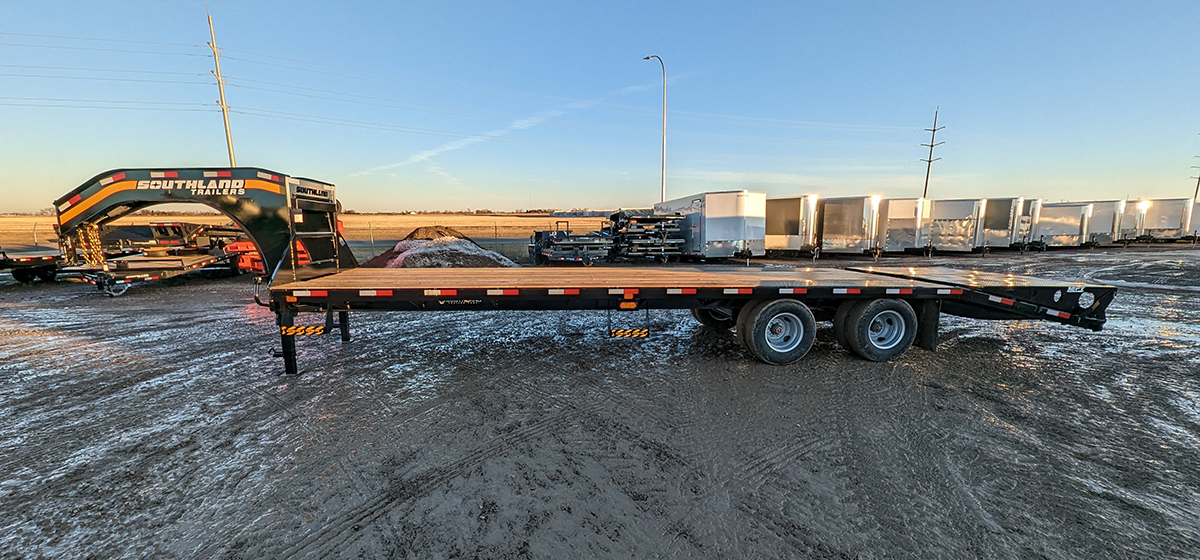

Gooseneck Flatbed
Build your trailer
Select your configuration below. Specs update automatically.
Axle
Axle Configuration
Deck Type
Live Specifications
Download PDF
Axle
(3) 16,000 lb
Coupler
2 5/16" Ball Coupler 30,000 lb
Safety Chains
45,200 lb 1/2" x 42.0" w/Clevis Slip Hook
Crossmember
1.25" SCH40 Steel Pipe
Lights
L.E.D. DOT Stop, Tail, Turn & Clearance
Deck
2" x 8" Fir Plank Decking
Suspension
Multi-Leaf Spring w/ Equalizer
Wheels
ST235/80R16 E 10ply
Brakes
Electric
Electric Plug
Cold Weather 7 Wire RV Plug
Jack
12,000 lb, Bolted, 13.5" Lift, Spring Loaded Front Pull Pin Drop Leg
Frame
90ksi Engineered Pierced-Beams w/ S3.0" x 2.9 lb High Tensile 80ksi Super Lite I-Beams
Side Rails
5" x 2" HSS Tubing, 2" x 3/8" Flat Bar Rub Rails, Chain Spools & Stake Pockets
Neck
Engineered One Piece Continuous Weld 90ksi Gooseneck
Rating Set
Standard | Standard | Standard | Standard | Standard | Standard | Standard | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option | Upgraded GVWR Option
Length (ft)
22 | 24 | 26 | 28 | 30 | 32 | 34 | 22 | 24 | 26 | 28 | 30 | 32 | 34
Net Weight (lb)
8985 | 9350 | 9530 | 9893 | 9995 | 10255 | 10455 | 9110 | 9475 | 9655 | 10018 | 10120 | 10380 | 10580
GVWR (lb)
30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 40000 | 40000 | 40000 | 40000 | 40000 | 40000 | 40000
Payload Capacity (lb)
21015 | 20650 | 20470 | 20107 | 20005 | 19745 | 19545 | 30890 | 30525 | 30345 | 29982 | 29880 | 29620 | 29420
Dimension A
192.375 | 216.375 | 240.375 | 264.375 | 288.375 | 312.375 | 336.375 | 192.375 | 216.375 | 240.375 | 264.375 | 288.375 | 312.375 | 336.375
Dimension B
151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25 | 151.25
Dimension C
107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625 | 107.625
Dimension D
40.625 | 40.625 | 40.625 | 40.625 | 40.625 | 40.625 | 40.625 | 40.625 | 40.625 | 40.625 | 40.625 | 40.625 | 40.625 | 40.625
Dimension E
34.5 | 35 | 35.25 | 35.5 | 36 | 36.5 | 37 | 34.5 | 35 | 35.25 | 35.5 | 36 | 36.5 | 37
Dimension F
79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125 | 79.125
Dimension G
1.3125 | 1.625 | 1.875 | 2.1875 | 2.5625 | 2.875 | 3.3125 | 1.3125 | 1.625 | 1.875 | 2.1875 | 2.5625 | 2.875 | 3.3125
3-Year Warranty
Structural integrity guaranteed.
